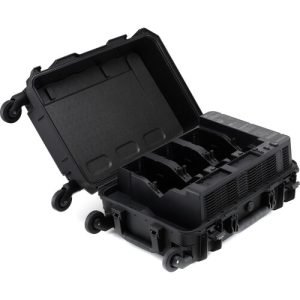

DJI BS100 Intelligent Battery Station

Description

DJI BS100 Intelligent Battery Station – The Ultimate Power Hub for Enterprise Missions

Keep your fleet mission-ready and your downtime to a zero. The dji intelligent battery station is a high-performance, all-in-one charging solution designed for the DJI Matrice 400 and professional enterprise series. Engineered for efficiency, safety, and portability, this station is the essential backbone for large-scale drone operations and continuous field deployments.

Key Features:

• Massive Charging Capacity: The dji intelligent battery station can house and charge up to eight TB100 Intelligent Flight Batteries and four WB37 Intelligent Batteries simultaneously, ensuring you have a constant rotation of power for all-day missions.

• Three Smart Charging Modes: Optimize your workflow with selectable modes:

  • Standard Mode: Charges each pair to 100% sequentially.

  • Ready-to-Fly Mode: Quickly charges each pair to 90% for the fastest turnaround.

  • Storage Mode: Discharges or charges batteries to 50%, the ideal level for long-term health and safety.

• Rapid Dual-Battery Charging: Spend less time waiting and more time in the air. The BS100 can charge a pair of TB100 batteries from 20% to 90% in approximately 30 minutes, keeping your production or inspection on schedule.

• Built-in Safety Management: Featuring an advanced internal cooling system and smart sensors, the station monitors voltage and temperature to prevent overheating and overcharging.

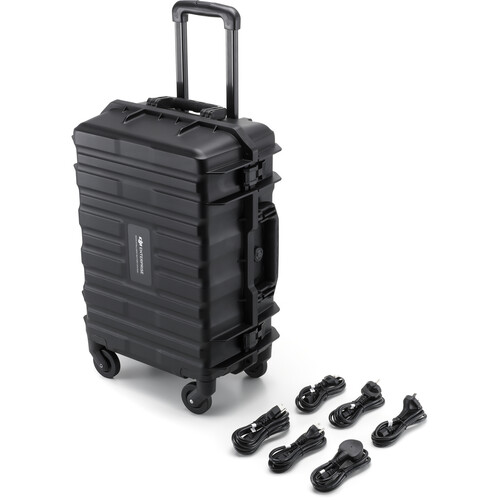

• Rugged, Portable Design: Housed in a durable, impact-resistant hard shell case with wheels and a telescopic handle, the dji intelligent battery station is built to withstand the rigors of transport to remote sites.

• IP-Rated Protection: With the cover closed, the station offers an IP45 rating, protecting your expensive batteries from dust and light moisture during transport or storage.

Technical Specifications:

• Model: BS100

• Input Voltage: 100-240 V, 50-60 Hz

• Output Power: Max 1000 W

• Supported Batteries: TB100 Intelligent Flight Battery, WB37 Intelligent Battery

• Charging Time (TB100): Approx. 60 mins (0 to 100%); Approx. 30 mins (20% to 90%)

• Operating Temperature: -20° to 40° C (-4° to 104° F)

• Weight: Approx. 8.5 kg (18.7 lbs)

• Ingress Protection: IP45 (Case closed)

In the Box:

• DJI BS100 Intelligent Battery Station

• AC Power Cable

• USB-C to USB-C Cable

• User Documentation

Why Choose the DJI Intelligent Battery Station?

For professional pilots and enterprise teams, power management is as critical as flight skill. The dji intelligent battery station eliminates the clutter of multiple chargers and provides a centralized, safe, and lightning-fast way to manage your fleet’s energy. It is the definitive choice for search and rescue, high-end cinematography, and industrial inspections.
